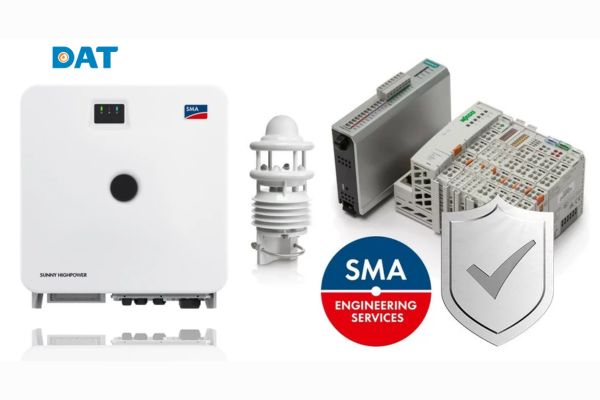

SMA Sunny Highpower Peak3 100kW Inverter

Sunny Highpower Peak3 100kW Inverter owns outstanding technologies, manufactured by SMA brand (Germany), is the optimal choice for large-scale industrial solar power system. The product helps the solar power system to operate stably, achieve a high efficiency of up to 98.8%, maximize the output thanks to the DC / AC ratio up to 150%, centralized operation and control the capacity of the solar power system through SMA Data Manager…

Hotline: 1800 6567
Yêu cầu báo giá

Specifications

Capacity: 100 kW Maximum efficiency: 98.8%
Trademark: SMA Protection level: IP65
Display: Notification LED Communication standards: Ethernet
See detailed specifications
Model Sunny Highpower Peak3
Input (DC)
Maximum power 150000 Wp
Maximum input voltage 1000V
MPP voltage range / Rated input voltage 590 V to 1000 V
Max. input current / Max. short-circuit current 590 V 180 A / 325 A
Number of input MPPT 1
Number of inputs 1 or 2 (optional) input juntion box
Output (AC)
Rated power at rated voltage 100000 W
Max. apparent AC power 100000 VA
AC Rated Voltage / AC Voltage Range 400 V / 304 V to 477 V
AC grid frequency / range 50 Hz / 44 Hz đến 55 Hz 60 Hz / 54 Hz đến 66 Hz
Rated frequency 50Hz
Max. output current 151 A
Power factor at rated power / displacement power factor adjustable 1 / 0 leading to 0 lagging
THD < 3%
Feed-in phases / AC connection 3 / 3-PE
Efficiency
Maximum efficiency/Euro-eta 98.8% / 98.6%
Protective equipment
Ground fault monitoring / Grid monitoring / DC reverse current protection ● / ● / ●
Surge arrester (type II) AC / DC ● / ●
AC short-circuit current capability / galvanically isolated ● / —
Pole sensitive residual-current monitoring unit
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) I / AC: III; DC: II
General data
Dimensions (W/H/D) 770 x 830 x 444 mm (30.3 x 32.7 x 17.5 in)
Weight 98 kg (216 lbs)
Operating temperature range −25 °C to +60 °C (−13 °F to +140 °F)
Noise emission < 69 dB(A)
Power consumption (night) < 5 W
Structure No transformer
Cooling type OptiCool, fan cooling, fan speed control
Protection class (according to IEC 60529) IP65
Max. permissible value for relative humidity (non-condensing) 100%
Features
DC connection/AC connection Cosse screw (up to 300 mm²) / Screw connector (up to 150 mm²)
LED display (Status / Fault / Communication)
Ethernet interface ● (2 ports)
Data interface: SMA Modbus / SunSpec Modbus / Speedwire, Webconnect ● / ● / ●
Mounting type Support
OptiTrack / System Control Integration / On-Demand Q Level 24/7 ● / ● / ●
Grid-independent operation / SMA fuel economy controller compatible ● / ●
Warranty: 5/10/15/20 years ● / ○ / ○ / ○
Certifications and approvals IEC/EN 62109-1/-2, VDE-AR-N 4110/4120, IEC 62116, IEC 61727, EN 50549, C10/11, CEI 0-16, G99/1 (>16A), PO 12.3, ABNT NBR 16149
Note ● Standard features ○ Optional features —  Not available
Product code SHP 100-20

DAT SOLAR – AUTHORIZED DISTRIBUTOR OF SOLAR INVERTER SERIES OF SMA

With more than 400 experienced employees always ready to support 24/7 before and after sales, DAT Solar is committed to ensuring the quality of all products distributed nationwide and providing smart solutions to help customers save time and costs.

Another reason for you to rest assured to put your trust in us:

medal

15+

Year Of Experiences

350+

Nhân sựStaff
storage

9500+

Solar power system with a total
capacity of 560MW nationwide

10+

10MW inverter
are always available

ACCOMPANY DAT TO "GREEN" VIETNAM WITH SOLAR POWER YOUR WAY!

OUTSTANDING FEATURES

Efficiency

  • High power density with 150 kW thanks to compact structure
  • Maximum output thanks to DC/AC ratio can be up to 150%

Trust

  • The availability of the solar power system is outstanding with a capacity of 150 kW
  • State-of-the-art features combined with the ennexOS power management platform

Flexible

  • DC input voltage up to 1500 V
  • Flexible DC solutions with Junction Boxes tailored to customer needs

Renew

  • Handy design
  • Simple installation and connection for quick installation

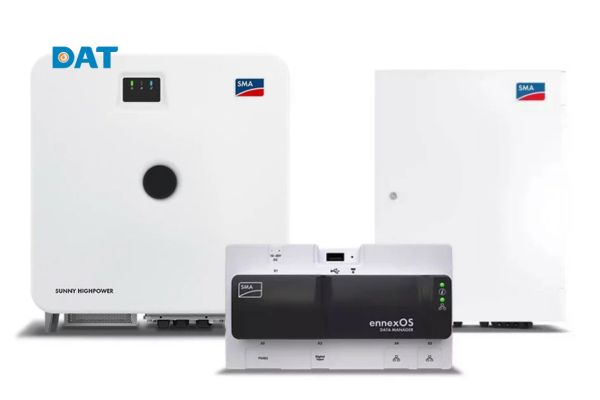

  • Centrally operate and control the capacity of the solar power system through SMA Data Manager

POLICY

Warranty: 5 years (standard) / 10, 15, 20 years (optional)
